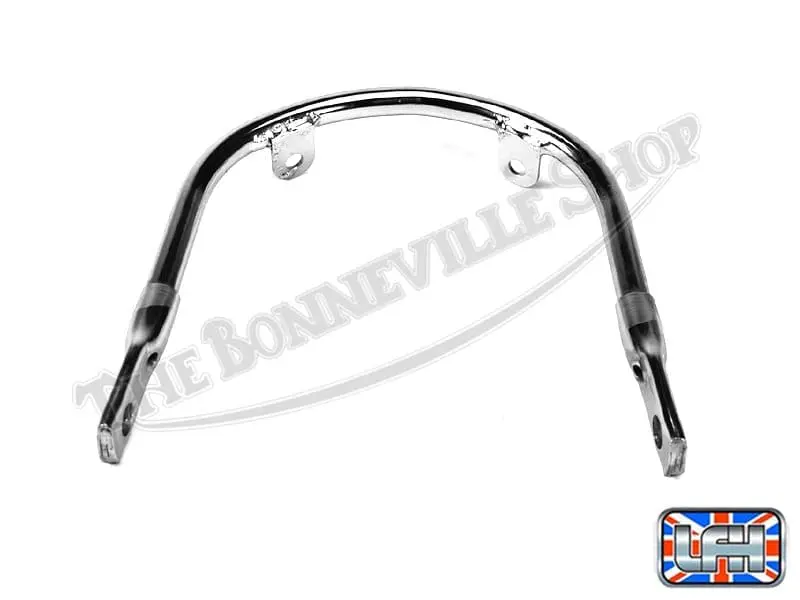

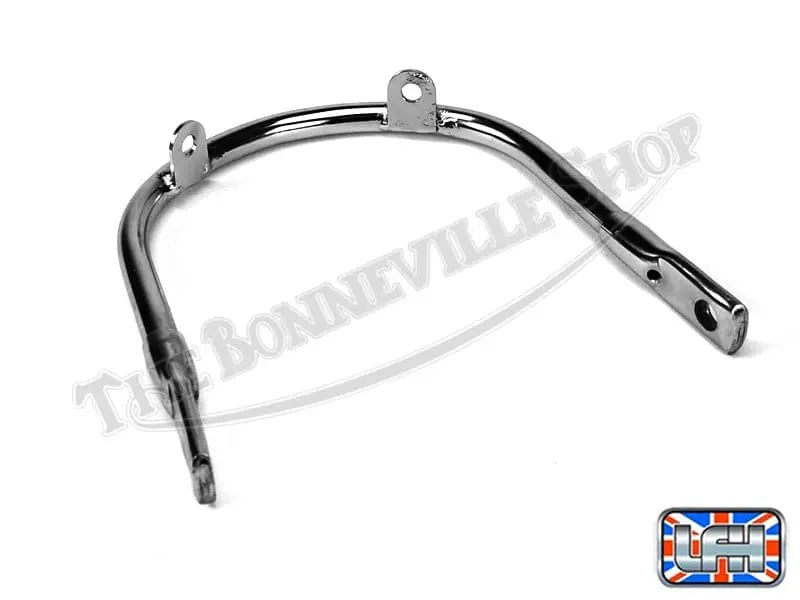

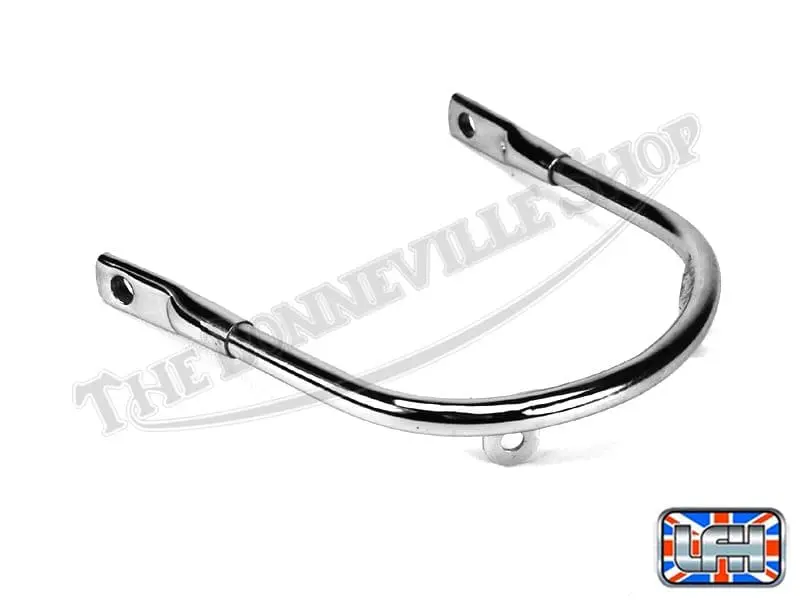

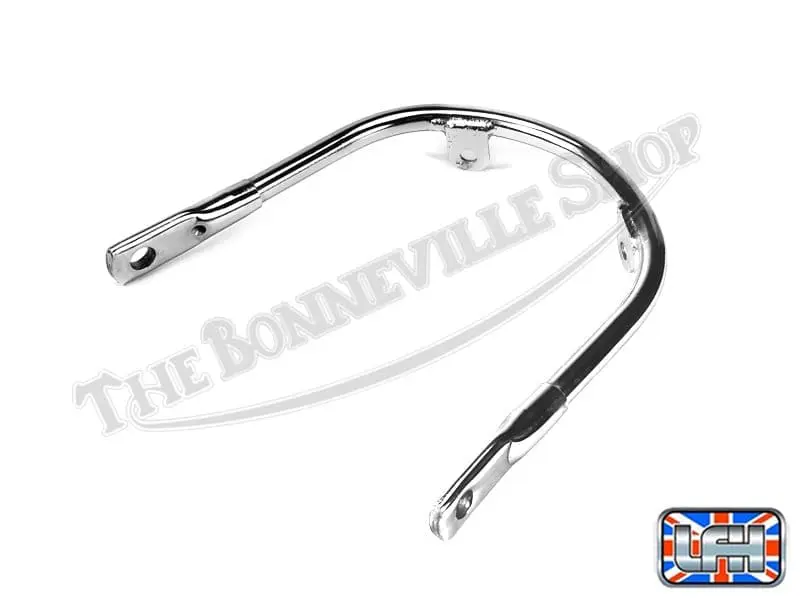

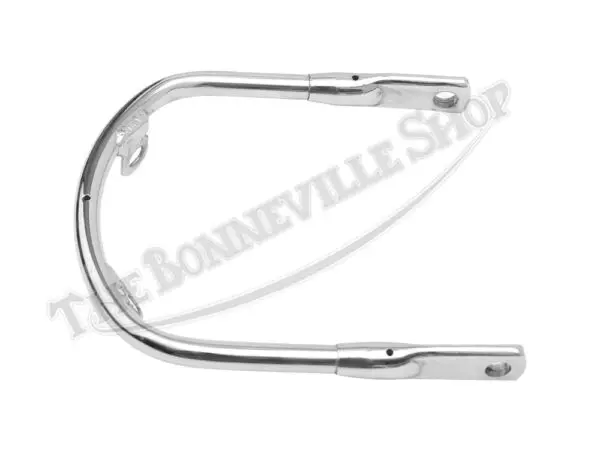

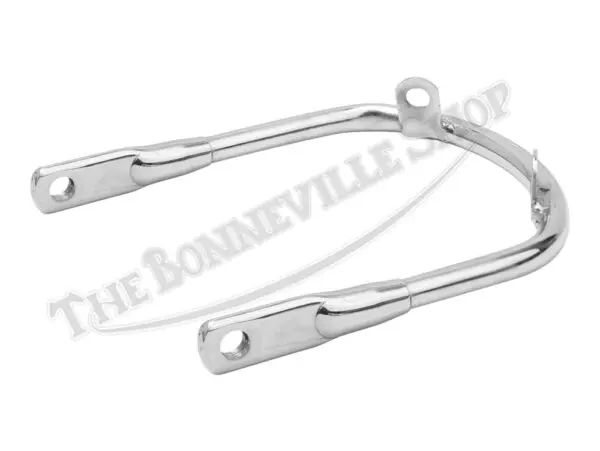

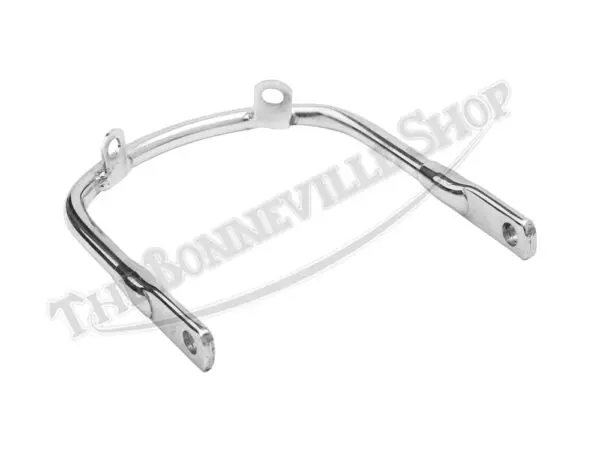

This chrome 2-tab middle mudguard stay is suitable for fitment to the front fenders of the 1973-1974 Triumph Tiger, Bonneville, and Trident 750 disc brake models.
Built to original specifications in the UK for LF Harris, the overall length is approximately 5-13/16″, with a width of 4-1/2″ at the top loop and 5-1/2″ at the fixing points.
The stay is mounted to the front fender in the center position with the tabs facing rearward using 1/4″ bolts and nuts. Not only does the stay secure the front fender to the forks, but it serves as a fork brace along with the front stay.
The middle stay is fitted to mounting brackets on each fork lower member, with the fixing points of the middle stay positioned over the fixing points of the front stay. The tabs are secured to the pre-drilled holes in the fender.
LF Harris motorcycle spares are produced to the highest quality standards possible utilizing original Triumph tooling, dies, factory blueprints & materials combined with modern manufacturing equipment, tolerances & techniques.
