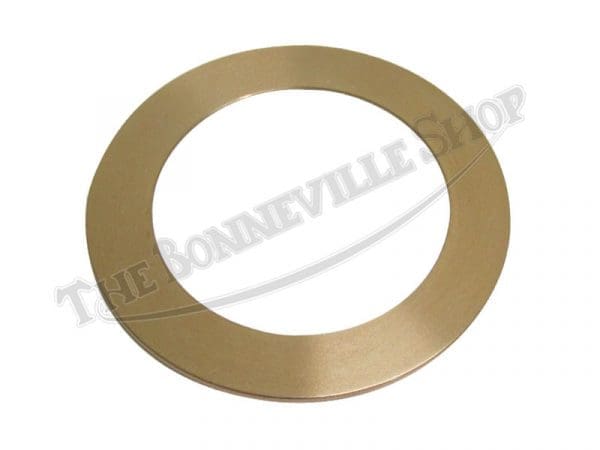

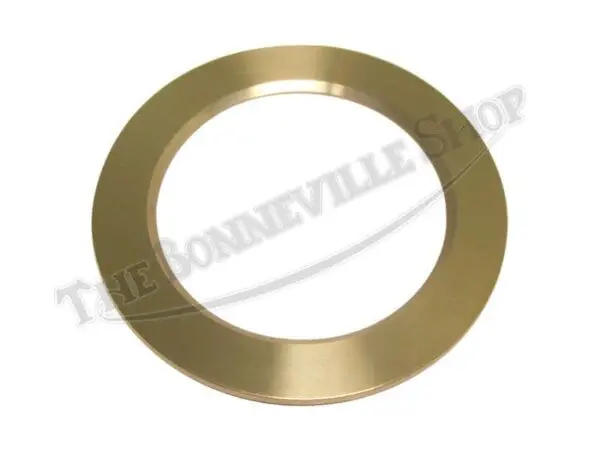

Triumph BSA 500 650 Premium Early Unit Twin Clutch Thrust Washer 1963-1969 PN# 57-1735 US T1735

Description

The clutch thrust washer is important as it serves as a buffer between the splined clutch hub and the clutch sprocket, or “clutch basket”. Clutch thrust washers are prone to wear and distortion of the inner diameter due to the forces they are subjected to.

This premium US-made thrust washer is constructed of durable bronze and features a chamfer designed to enhance the fit against the shoulder on the clutch hub and minimizes migration out of position once fitted. Suitable for fitment to the 1963-1969 Triumph twins and 1966-1969 BSA twins. The ID of the washer is 1.834″, the OD is 2.620″, and it is .054″ thick.

The thrust washer must be sufficiently thick to prevent the clutch hub from interfacing with the backside of the clutch sprocket. When fitted correctly, the chamfered side of the washer will face the clutch hub. It is recommended to replace the original thrust washer if there is any doubt about its integrity.

The primary chaincase must be opened up, and the clutch assembly partially disassembled to access the clutch hub and thrust washer. Consult the workshop manual for more detailed instructions for this procedure.

Please note: Due the nature of the product, we unfortunately do not accept returns on bearings, thrust washers, service tools or electrical components. Please be confident about your purchase before ordering. If you have questions, please contact us.
