The clutch thrust washer is important as it serves as a buffer between the splined clutch hub and the clutch sprocket, or “clutch basket”. Clutch thrust washers are prone to wear and distortion of the inner diameter due to the forces they are subjected to.
This reproduction thrust washer is constructed to the original dimensions and features the locating tabs and steel backing, as specified by the factory for fitment to the 1963-1969 Triumph twins and 1966-1969 BSA twins. The ID of the washer is 2″, the OD is 2.625″, and it is .052″ thick. Made in the UK from LF Harris.

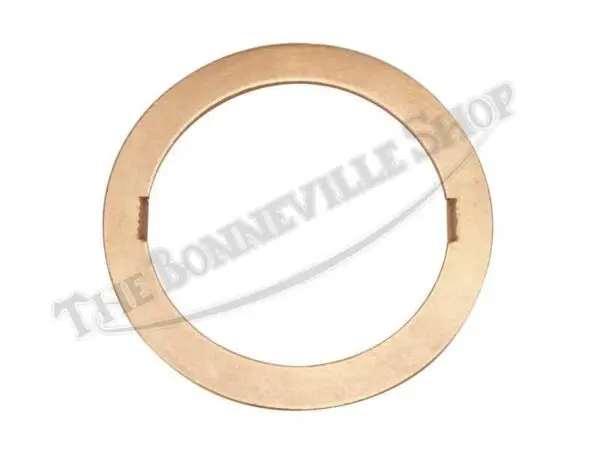

The thrust washer must be sufficiently thick to prevent the clutch hub from interfacing with the backside of the clutch sprocket. When fitted correctly, the bronze bearing side will face the clutch sprocket. It is recommended to replace the thrust washer if there is any doubt about it’s integrity.

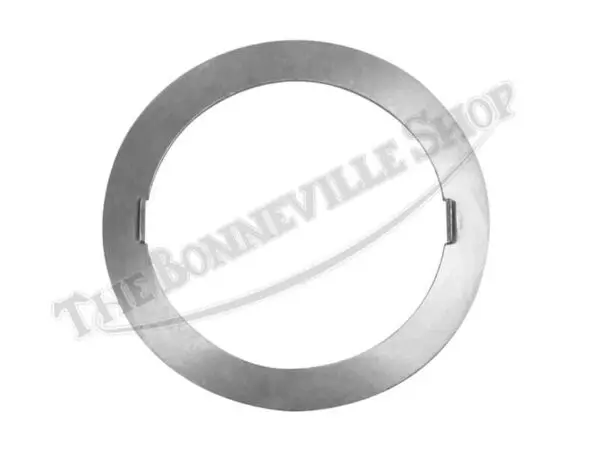

The primary chaincase must be opened up, and the clutch assembly partially disassembled to access the clutch hub and thrust washer. The washer fits over the clutch hub with the steel back facing the clutch hub, with the locating tabs seated into the holes on the face of the hub. Consult the workshop manual for more detailed instructions for this procedure.
Please note: Due the nature of the product, we unfortunately do not accept returns on bearings, thrust washers, service tools or electrical components. Please be confident about your purchase before ordering. If you have questions, please contact us.
