Established in 1990, the Devon Rim Company Ltd has been a purveyor of the finest wheel goods available worldwide for vintage British motorcycles. Their “TRU” Dunlop profile and finish offer the most authentic replacement rims for the restorer. This wheel rim and spoke kit application will suit Norton 650 and 750 models equipped with full-width 8″ front and rear hubs and 19″ rims.

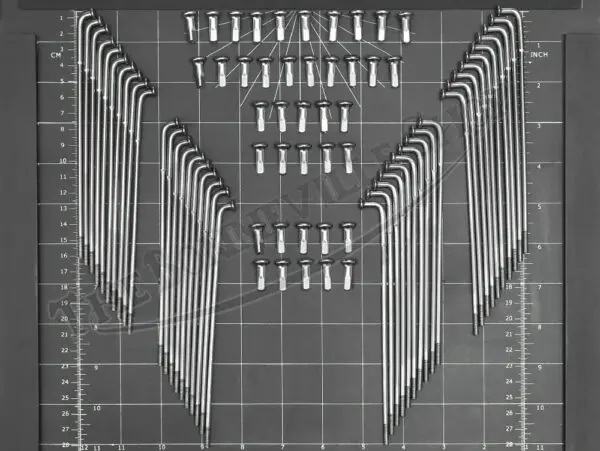

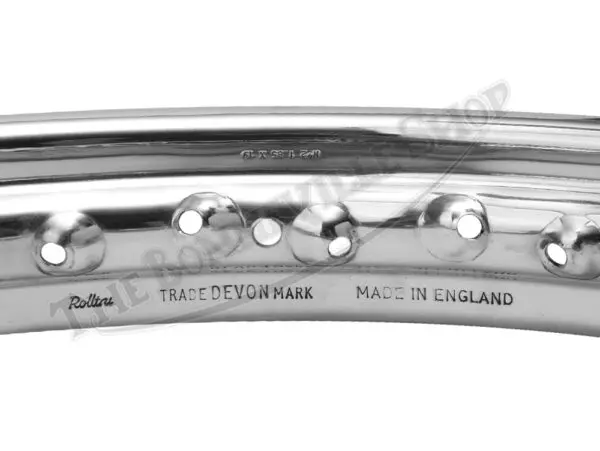

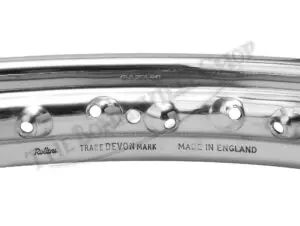

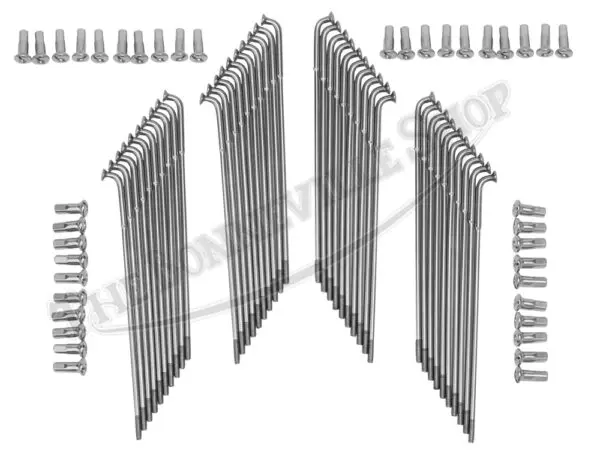

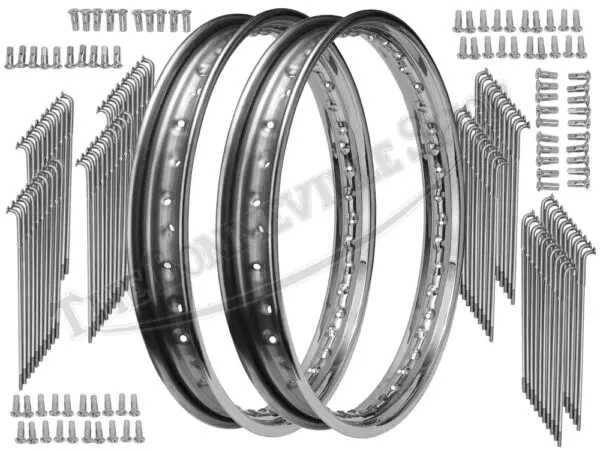

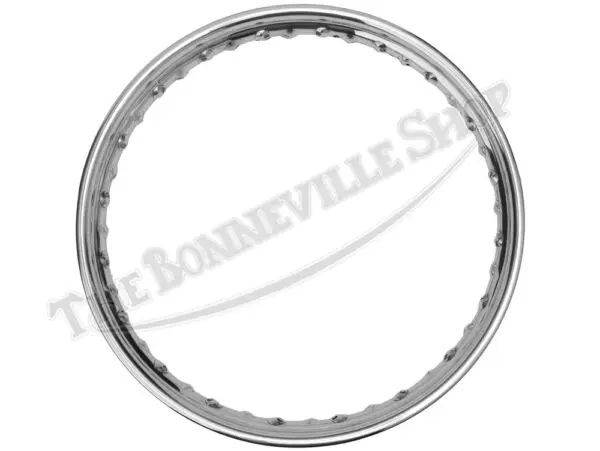

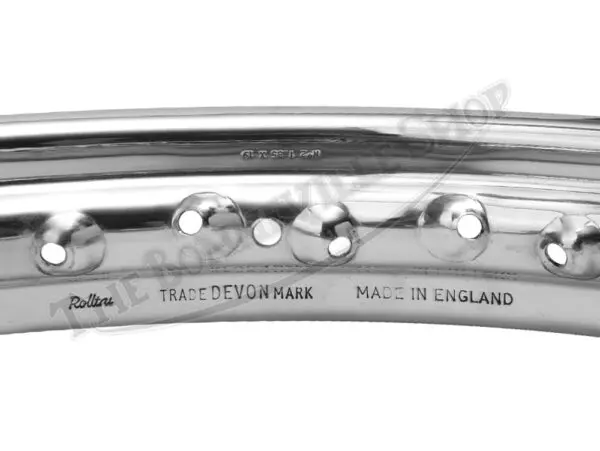

This matching set of front and rear WM2-19 rims and spoke sets are top quality Devon Rolltru Mirror polished stainless steel, manufactured and finished in the UK. The restoration-quality rims feature stampings that mimic the original Dunlop patterns. The 8/10 gauge butted stainless spokes are supplied with .250″ brass nickel plated nipples.
Stainless rims and spokes offer a bright and corrosion-resistant finish and are an excellent choice for replacement of the original chrome plated rims and galvanized spokes. Modern manufacturing standards ensure safe and attractive wheels for superior reliability on the road.
Wheel building is a specialized skill and requires patience and specialty tools. A wheel truing stand will be beneficial for achieving a trued wheel and safely finished product. Refer to the specific model’s workshop manual for more details on rim lacing and correct offset specifications. In many cases, wheel building is best left to an experienced wheel smith.
–
A note about lacing wheels: Your new rim may not lace up in the same pattern of your existing rim.
For example, the Triumph disc rear from the factory used a couple of different dimple patterns of their rims, some used a 3 x 1 pattern and some used a 1×1 cross through pattern
Start with just your inner spokes, remembering that all spokes on the left-hand side of the hub go to the right-hand dimples and vice versa. When all the inners look like they are going the right direction, you can move onto his longer and shorter outer spokes depending on his offset.
Process Guide: Lacing A Cross 3 Pattern Rear Disc Wheel
The product images shown are for illustrative purposes only and may not be an exact representation of the product received. Manufacturers occasionally make minor cosmetic changes to items, such as color, finish, label, or design. These changes do not impact the item’s function or compatibility. Please contact us if you have specific concerns regarding appearance.
