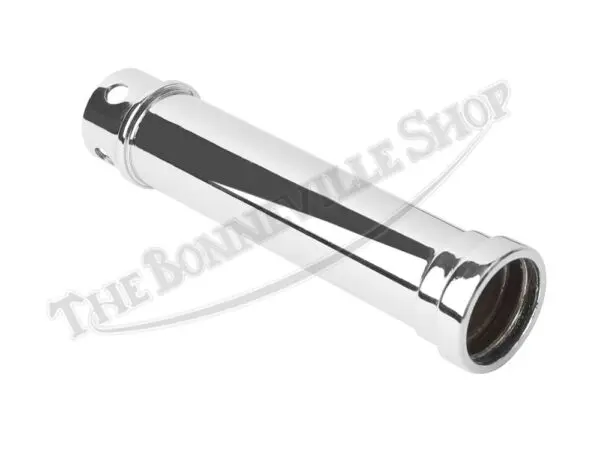

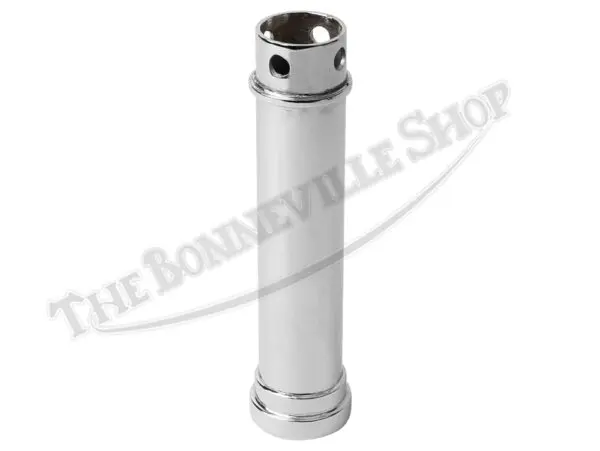

Triumph 750 T140 TR7 Chrome Pushrod Tube 1973-78 PN# 71-3329 W
Pushrod tube selection is critical to building an oil-tight Triumph twin-cylinder engine. This pushrod tube is specifically for the 1973-1979 Triumph 750 engines.
In the original configuration, o-rings are fitted to the top collar and within the internal groove at the lower flare. An additional square section seal is placed over the guide block and is retained by a sleeve which fits around the seal and the lower flared end of the pushrod tube.
The rocker boxes and cylinder head must be removed to access the pushrod tubes. Be prepared to replace seals and gaskets upon reassembly. The correct torque specifications must be observed when refitting the cylinder head. Refer to the factory workshop manual for specific instructions and specifications.
Approx Specs:
Length: 5 1/16 inch
ID: 7/8 inch
OD: 1 inch
Base to bottom of collar: 4.3325 inch
Thickness of collar: 0.1005
Collar to top of pushrod tube: 0.5875 inch
