Triumph T100, TR6, T120R 1960-1969 And T150 1968-69 Rear Brake Plate (Stud 7/16″X26 CEI) (1) PN# 37-1112

$159.95

Out of stock

Add to Wishlist
Add to Wishlist
SKU: 633726137448 Categories: , Tags: ,

Description

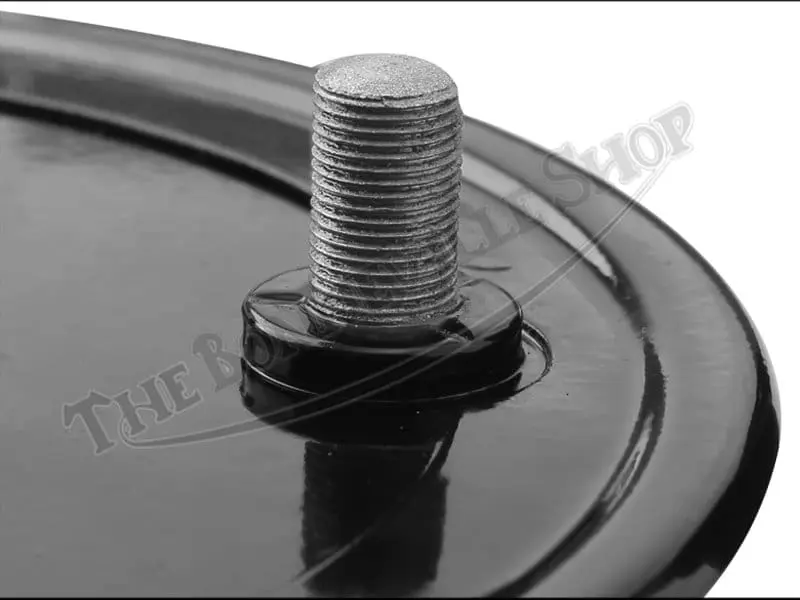

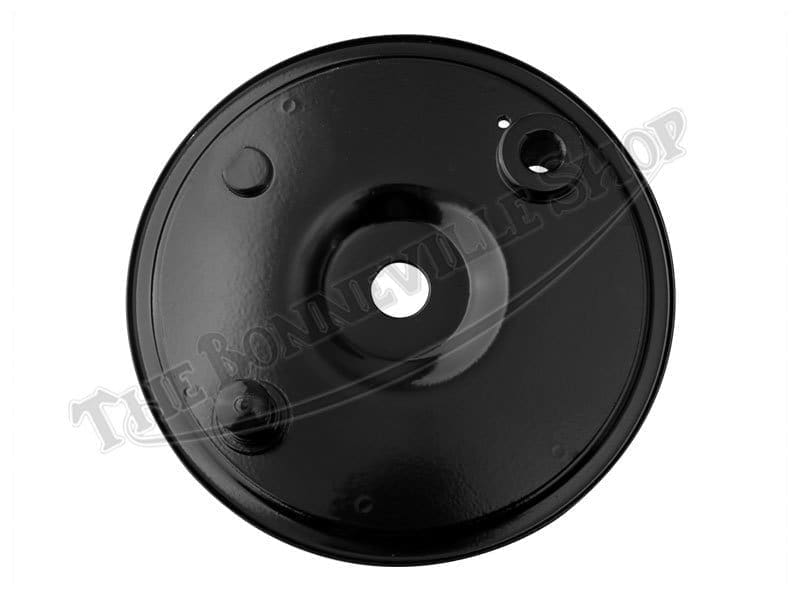

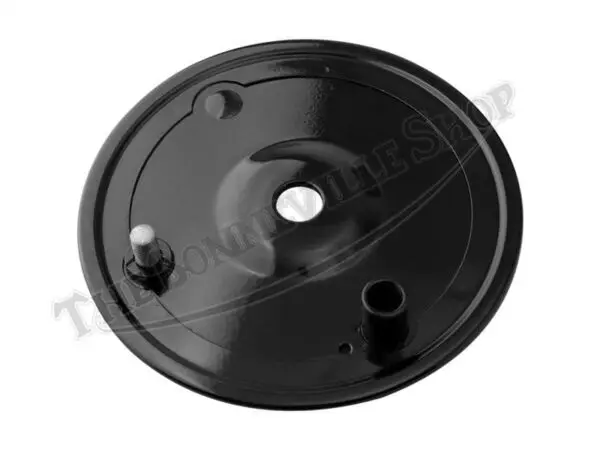

Lovely UK made, Powder Coated Rear Brake Plate as fitted to Triumph 500 and 650 Unit Twins. These are manufactured for us to exacting original specs using original Triumph Tooling and Powder Coated a durable high gloss black. The stud is 7/16″ x 26 CEI.

For the record, all brake plates are not the same, there are three variations to be aware of:

  • 37-1121 : 1960-1968 T100, TR6, T120 models with Quickly-Detachable rear wheel (QD), not US-Spec. These are the brake plates with the elevated built-in spacer. CEI threads on the stud. The 37-1121 is discernible by it’s CEI threads and the extended spacer/spindle guide. These were only specified on home-market bikes.
  • 37-3590 : 1970 only TR6R, TR6C, T120R. 1970-73 T100 models. 1970 only T150. UNF threads.
  • 37-1112 : 1960-1969 T100, TR6, T120R models. 1968-69 T150. CEI threads on the stud.

The 37-3590 and 37-1112 are virtually identical, but for the differences in thread forms, and as such, could be interchanged by pairing the correct nut with each version. The 37-1121 is for the early motorbikes and fit 1960-69 500 & 650 Unit and Pre-Unit Twins.
