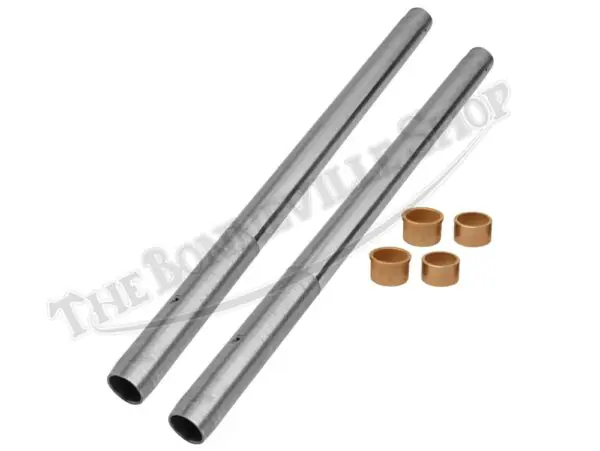

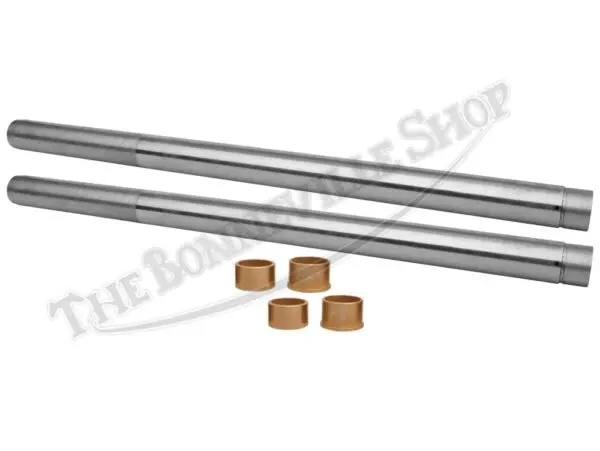

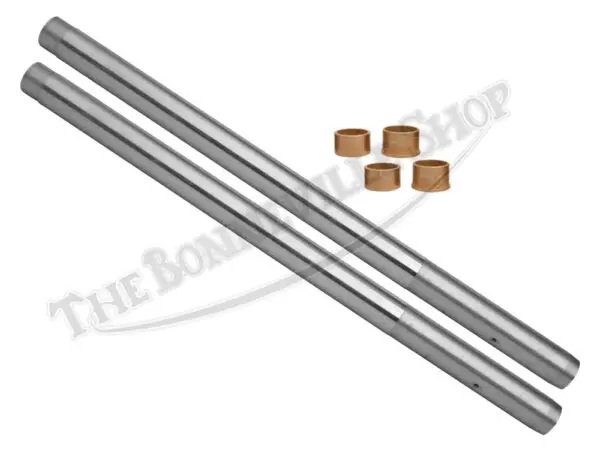

This set of matched telescopic fork stanchion tubes are specific to the nacelle-equipped pre-unit Triumph models with internal spring forks used from 1947-1959. A set of (2) lower and (2) upper bushings are also included in this kit. Not suitable for fitment to the pre-unit TR5 and TR6 models.
Quality manufactured fork stanchion tubes from TJ Wassell in the UK provide excellent fitment and performance at an attractive price, which includes a complete set of bronze bushings. The stanchions feature a wear-resistant hard chrome finish and have the oil filler drillings. Overall length is approximately 22-1/8″ and are 1.300″ OD. Threaded for 26 TPI CEI bearing nuts and fork top nuts.
The stanchions are captured in the lower and upper fork yokes and are sprung with internal springs. The fork oil seal holders retain the seals and secure the fork lowers to the fork tubes. The integrity of the fork tubes is critical to the proper performance and safety of the suspension fork assembly.
The front wheel, mudguard, and nacelle top must be removed to allow replacement of the fork tubes. The factory workshop procedures should be followed to ensure proper assembly of the front fork. A special fork tube puller tool makes reassembly easy. We offer the tool kit under part number TBS-5469.
The product images shown are for illustrative purposes only and may not be an exact representation of the product received. Manufacturers occasionally make minor cosmetic changes to items, such as color, finish, label, or design. These changes do not impact the item’s function or compatibility. Please contact us if you have specific concerns regarding appearance.
