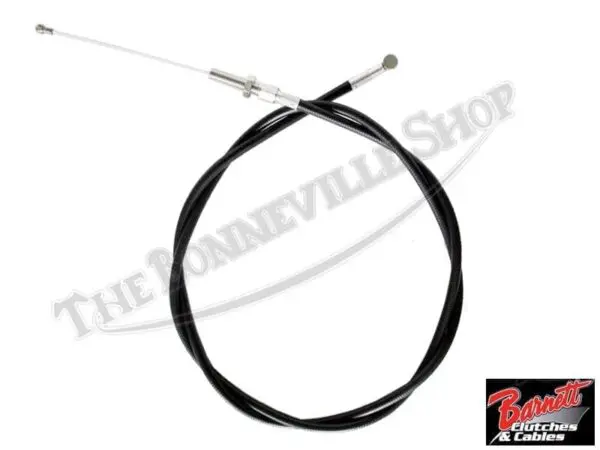

BSA A50 A65 A70 Clutch Cable 1970-1972 Barnett PN# 60-3077 B

$37.80

Availability: In stock

SKU: 633726127937 Categories: , Tags: , OE Number: 60-3077Year: 1970-1972Make: BSAModel: A50R A65F A65L A65T A70 Brands:

This premium clutch cable is suitable for use on the 1970-1972 BSA twins with original stock handlebars and revised Triumph-style clutch actuator.

Barnett cables are regarded as some of the finest cables available for vintage British motorcycles and are manufactured to original specifications in the US. This cable is supplied with the integrated long barrel adjuster and lock nut. The overall length is 56″, with a sheath length of 50-1/4″ (including the adjuster), and an inner wire free length of 4-3/4″.

The cable is the link between the control lever on the handlebar and the clutch actuator inside the outer gearbox cover. When the control lever is pulled in, the cable pulls the clutch actuator operating arm upward, disengaging the clutch to allow gear selection. It is important that the length of the cable is correct for the application.

The inspection cap on the outer timing cover is removed to allow access to the end of the cable where it is captured by the fork on the operating arm. Once the adjusters on the control lever and the gearbox end of the cable are fully collapsed, enough free inner wire will allow the cable end to be removed from the operating lever. It is advisable to pay close attention to the routing of the cable to avoid adding unnecessary friction to the movement of the inner wire.

We also stock BSA clutch cables for alloy lever models (Firebird, etc) click here.

And cables for 1962-69 BSA models click here.

For our complete selection of Barnett products click here.
