Triumph Unit Twin 650 Complete Gasket Set – No Headgasket U.S. Made ’63-70 PN# TBS-1652

$64.95

In stock

Add to Wishlist
Add to Wishlist
SKU: 633726165243 Categories: , Tag: Year: 1963-1970Make: TriumphModel: 650

Description

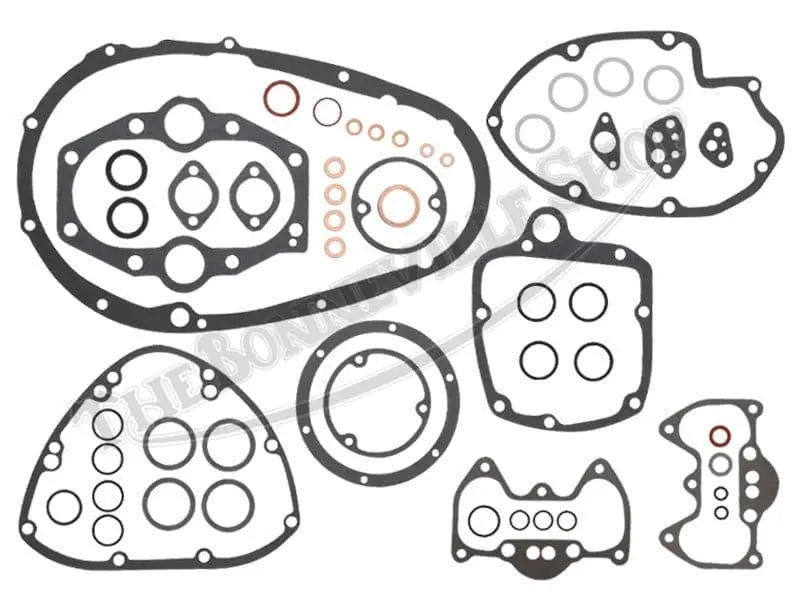

Cov-Seal gaskets are among the finest fitting and sealing gaskets available. This gasket set is complete with gaskets, fiber washers, copper washers, and o-rings needed to overhaul Triumph 650 B-range engines from 1963-1970. The copper head gasket is not included in this set.

Made in the US, the Cov-Seal gaskets feature a unique gasket material binding agent, known as Buna-N, which is the same material most o-rings are made from. The gaskets are meant to be fitted dry, as gasket sealants may contain chemicals that can soften Buna-N.

Gaskets form a seal between two mating surfaces. It is important that the mating surfaces are flat, completely cleaned, and devoid of any residual sealant or old gasket material. Properly prepared joining surfaces are critical to ensuring an oil-tight motorcycle engine.

Gasket sealing compounds are not recommended for use with Cov-Seal gaskets.

Note, this gasket set does not include a headgasket, for the kit that does include a headgasket see recommended links.

To see other gaskets we sell as kits and individually CLICK HERE

INDIVIDUAL GASKETS FOR THIS KIT ARE LISTED BELOW FOR INFORMATIONAL PURPOSES ONLY. GASKETS IN THIS KIT ARE NOT PARSED FOR INDIVIDUAL SALE. THIS ITEM IS SOLD AS A KIT ONLY AND INCLUDES:

  • (1) 57-1770 Primary cover gasket
  • (1) 70-6309 Cylinder base gasket
  • (1) 71-7263 Timing cover gasket
  • (1) 57-7012 Inner gearbox cover gasket
  • (1) 71-1448 Outer gearbox cover
  • (1) 70-3832 Cover plate gasket
  • (2) 70-9348 Rocker box gaskets
  • (1) 70-5049 Points cover gasket
  • (1) 57-2442 Rotor inspection cover gasket
  • (1) 70-3763 Oil junction block gasket
  • (1) 70-3730 Oil pump gasket
  • (1) 71-1076 Breather outlet gasket
  • (2) 70-5660 Manifold gaskets
  • (4) 70-3751 Rocker inspection cap gaskets
  • (4) 70-7310 Pushrod tube o-rings
  • (2) 70-4752 Pushrod tube seals
  • (2) 70-3547 Pushrod tube seals
  • (2) 70-1496 Pushrod tube seals
  • (1) 70-8754 Fiber washer
  • (1) 70-1670 Fiber washer
  • (2) 70-7563 Guide block o-rings
  • (1) 70-5315 Drain plug copper washer
  • (4) 70-1335 Rocker feed copper washers
  • (2) 70-2441 Copper washers
  • (3) 82-1880 Copper washers
  • (3) 70-8782 Inspection plug o-rings
  • (1) 70-3309 Gearchange spindle o-ring
  • (2) 70-3253 Rocker spindle o-rings
  • (1) 57-1738 Fiber washer
  • (1) 57-1257 Fiber washer
