Triumph 500 650 Twins 750 Triples Shuttle Valve Fork Tube Set (2) ’68-74 PN# 97-3904 97-2092


Availability: In stock

SKU: 633726133440 Categories: , , , Tags: , , , OE Number: 97-3904 97-2092 H3904 H2092Year: 1968-1970. (T100 models through 1973)Model: BSA A75. Triumph T100C T100R TR6R T120R T150

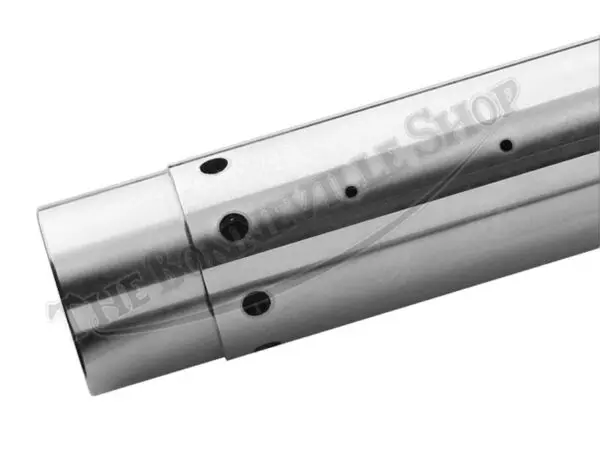

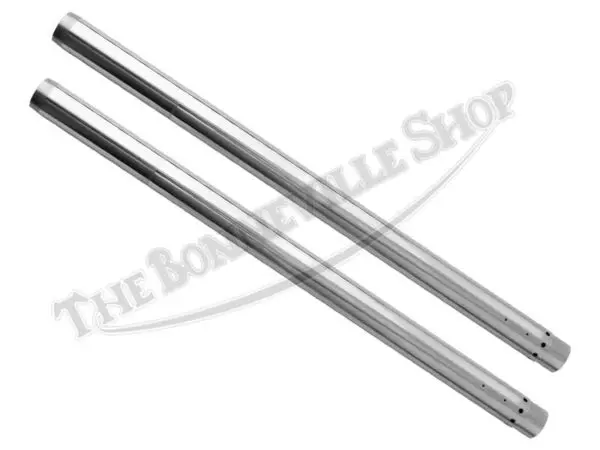

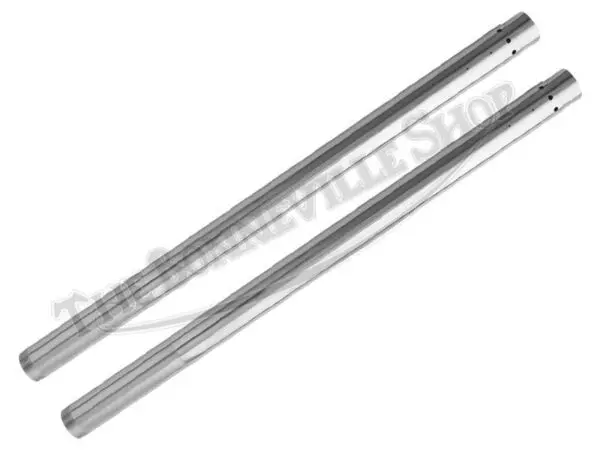

The most current design of the shuttle valve damping fork tube set features a hard-chromed finish for durability and improved oil sealing.

Quality manufactured fork tubes from Emgo provide excellent fitment and performance at an attractive price. The stanchions measure 22″ long. Threaded for 28 TPI UNF bearing nuts and fork top nuts.

The stanchions are captured in the lower and top fork yokes and are sprung with external springs. The fork oil seal holders retain the seals and secure the fork lowers to the fork tubes. The integrity of the fork tubes is critical to the proper performance and safety of the front suspension fork assembly.

The front wheel and mudguard must be removed to allow replacement of the fork tubes. The fork seal holders must be unthreaded from the fork lower members to gain access to the fork stanchion assembly. The factory workshop procedures should be followed to ensure proper assembly of the front fork. A special fork tube puller tool makes reassembly easy. We offer the tool kit under part number TBS-5469.
