Triumph TR7RV T140V Fender Stay Kit and Mudguard/Fender 1973-76 PN# 97-4533 97-4534 97-4535 97-4439

This chrome fender stay and fender kit is suitable for the 1973-1974 Triumph Tiger, Bonneville, and Trident 750 disc brake models.

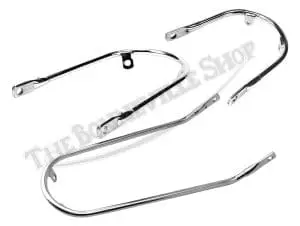

Built to original specifications in the UK, the specifications of the stays are:

• Forward Stay 97-4533: the overall length is approximately 6-1/2″, with a width of 4-1/2″ at the top loop and 4-3/4″ at the fixing points.
• Middle Stay 97-4534: overall length is approximately 5-13/16″, with a width of 4-1/2″ at the top loop and 5-1/2″ at the fixing points.
• Lower Stay 97-4535: Overall length is approximately 14″, with a width of 4-1/2″ at the top loop and 7″ at the fixing points.

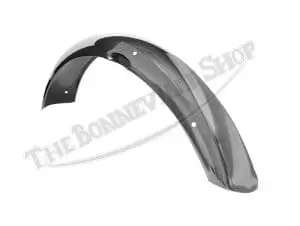

• Front Fender/Mudguard 97-4439

The stays are mounted to the front fender with the tabs facing rearward using 1/4″ bolts and nuts. Not only does the stay secure the front fender to the forks, but it serves as a fork brace along with the front stay.

The tabs are secured to the pre-drilled holes in the fender.

Key Features of TTR7RV T140V Fender Stay and Mudguard Kit 1973-76

• • Improved Protection: Provide enhanced protection for both the rider and the motorcycle.
  • Easy Installation and Maintenance: Designed for straightforward installation, often requiring only basic tools.
  • Durability and Longevity: Made from robust materials that can withstand the rigors of regular riding. This durability ensures that the fender stays in place and continues to protect the bike over time.
  • True to Original: Maintain the original appearance of your Triumph model using this fender stay kit.

For helpful information, read our tech blog: A Bit About Fender Stays – The Bonneville Shop
