Triumph Tiger T20 Cub BSA Bantam Genuine Girling Front and Rear Brake Shoes (2) 1959-67 PN# 37-0977G 90-5719


In stock

Add to Wishlist
Add to Wishlist
SKU: 633726164048 Categories: , , , , Tags: , OE Number: 37-0977 90-5719Year: 1959-1967Make: BSA TriumphModel: BSA D7, D10, D14. Triumph T20 T20M Brands:


The Girling name is a legacy brand that dates back to the 1920s, and has long been known for innovation and quality brake parts. A complete new lineup of motorcycle brake components are now available replicating the original equipment as specified for BSA, Norton, and Triumph motorcycles.

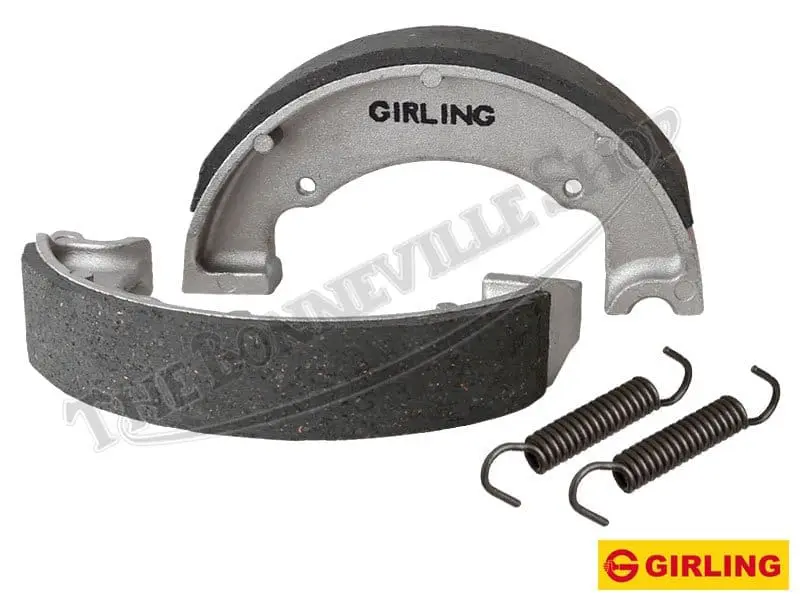

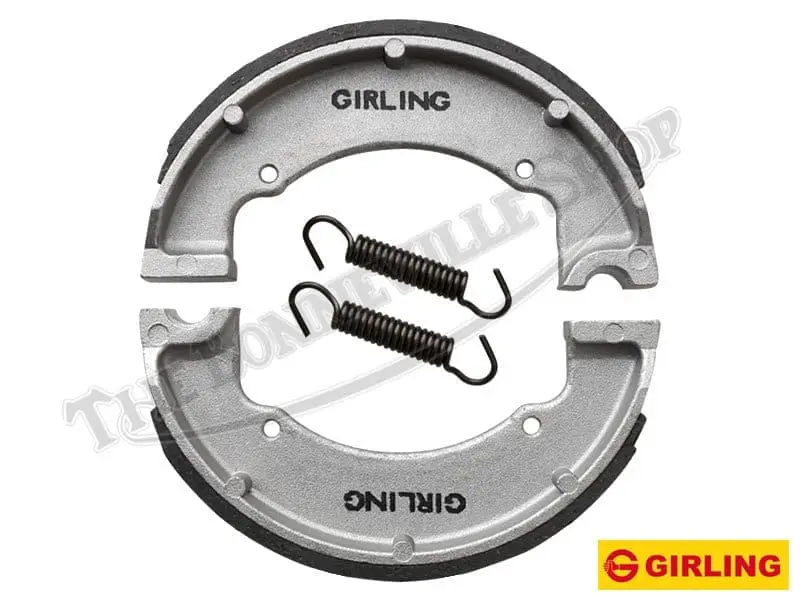

This matched brake shoe set is compatible with the 5.5″ BSA and Triumph front and rear hubs as fitted to the 1959-1967 BSA Bantam, Bushman, and Triumph Cub single cylinder “flyweight”models. Replacement springs are included. Top quality and fitment from Girling.

The brake shoe linings must be adequately thick to provide the correct position of the operating arm on the brake plate. If the brake shoe linings are worn thin, damage to the machined brake drum surface can occur and the front brake cable or brake rod can no longer be adjusted to maximize stopping power.

The brake shoes are fitted to the brake plate as a matching shoe set, and are retained to the plate with a return spring at the end of each brake shoe. They pivot on a fixed pin opposite of the actuating cam, which is operated by the brake arm lever on the outside of the brake plate.
