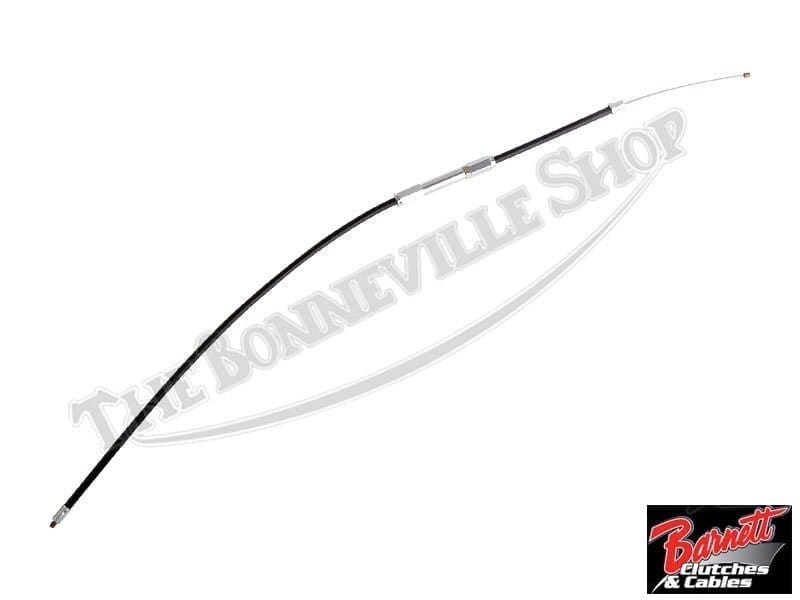

Properly sized throttle cables are essential for safe and correct adjustments to the throttle and carburetor. This throttle cable is used from the junction block to the carburetor and is suitable for the 1976-1978 US-specification T140V models with twin Amal 930 Concentric carburetors. (2) lower cables are used in the original throttle cable assembly. This listing is for (1) cable.
This premium-quality cable from Barnett features alloy ferrules, including the correct “top hat” ferrule at the carburetor end, an inline adjuster, and a friction-reducing nylon lining for easy operation and longevity. Overall length is approximately 20-1/4″, sheath length is 16-3/4″, with an inner wire free length of 3-1/2″. Made in the US.
The cable is pulled by the motion of the twist grip, allowing it to raise and lower the throttle slide in the carburetor. The top cable nipple is fitted to the internal sliding fitting of the junction block, which is controlled by the movement of the single upper cable from the twist-grip. Fine adjustments to cable lash are made by the inline adjuster on the cable.
The junction block must be opened to allow the lower cables to be positioned in the internal sliding fitting. The carburetor top cap then must be removed to thread the cable through the top cap. The return spring is installed over the cable, and the cable is captured in the throttle slide. The needle and clip are dropped in the slide bottom, with the return spring compressed so it is out of the way.Â
