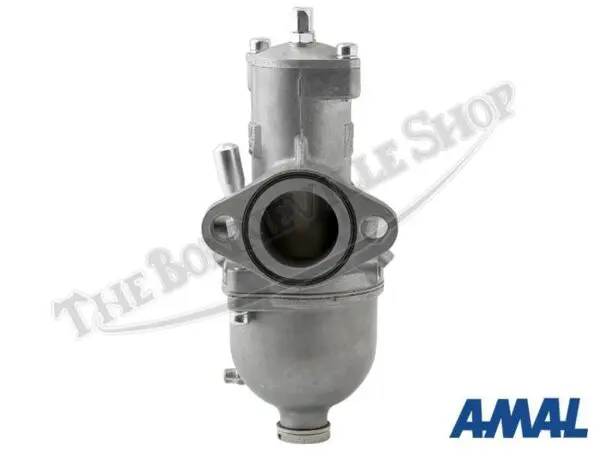

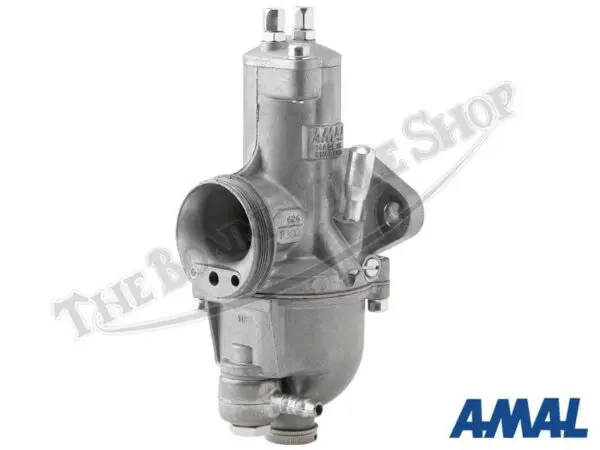

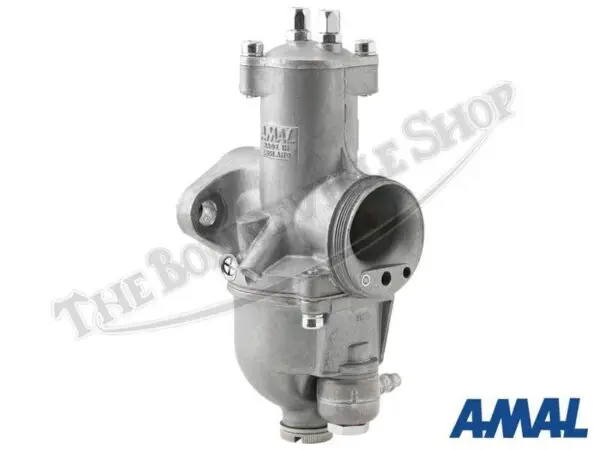

Triumph 500 T100T T100R Daytona Tiger Amal 626 Right Carb 1968-74 PN# 626R

$318.89

Out of stock

SKU: 633726158849 Categories: , , , , , Tag: OE Number: 626RYear: 1968-1974Make: TriumphModel: T100T and T100R Brands:

This right-hand carburetor is set up in the twin-carburetor configuration, with a #3 slide cutaway and 160 main jet. The adjusting screws and tickler are on the right side of the body.

Standard 600 series 26mm bore Amal Concentric, as used on the Triumph 500 T100R Daytona models. Updated “Stay-up” float and Viton-tipped float needle are important features. Jetted for use on a twin-carburetor application.

The Amal 626R is ideally paired with the 626L left-hand carburetor. Can be used as a single carburetor on models requiring one carburetor but will likely need a #3.5 or #4 slide cutaway and larger main jet for proper performance.

The carburetor is mounted to the inlet manifold and is fitted with an air cleaner. A dual inlet banjo is usually fitted to the float bowl on models with twin petcocks fitted to the petrol tank.

Note: The carburetor top cap adjusters must be removed and the threaded holes drilled out to accept Triumph-specific throttle and choke cables with the “top-hat” ferrules fitted.
