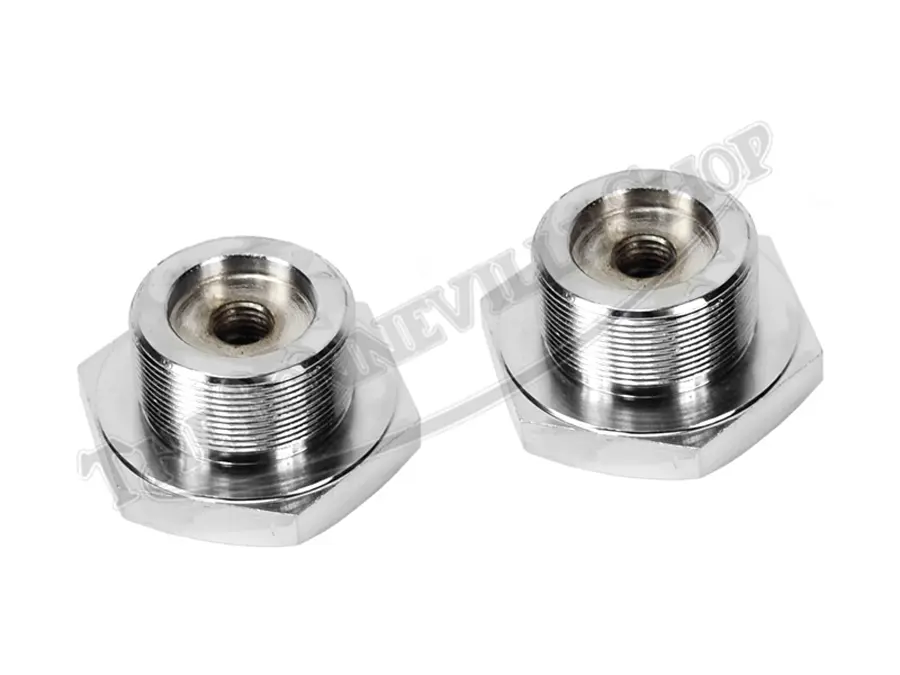

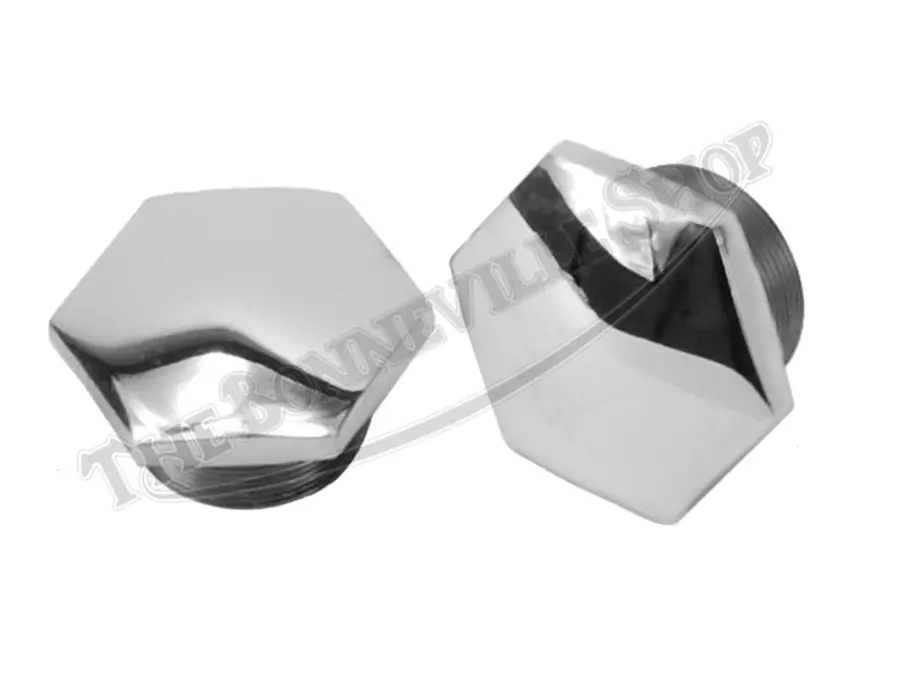

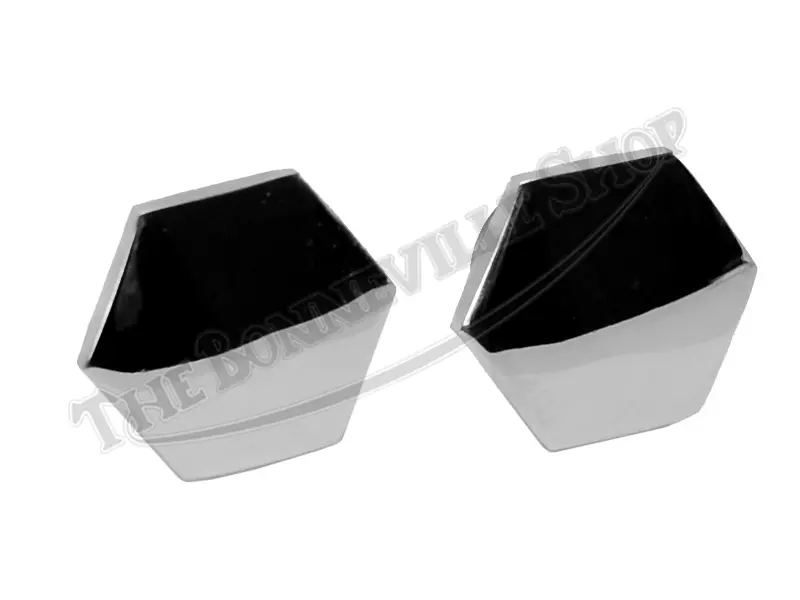

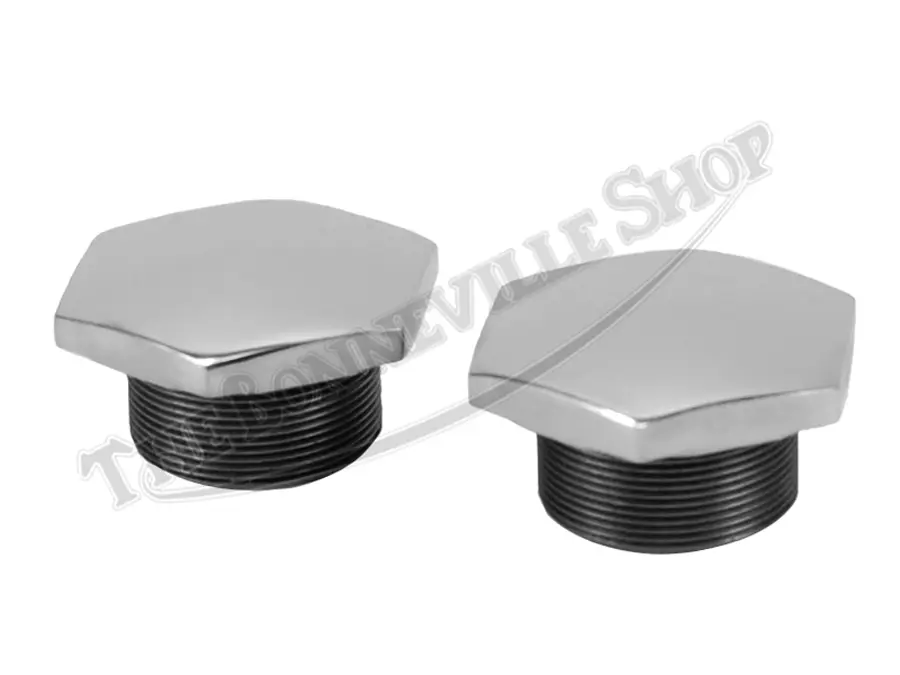

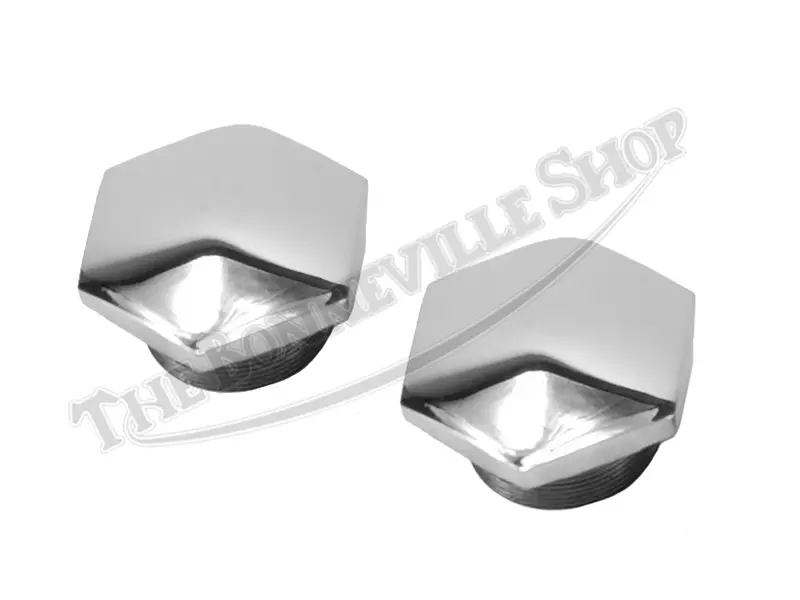

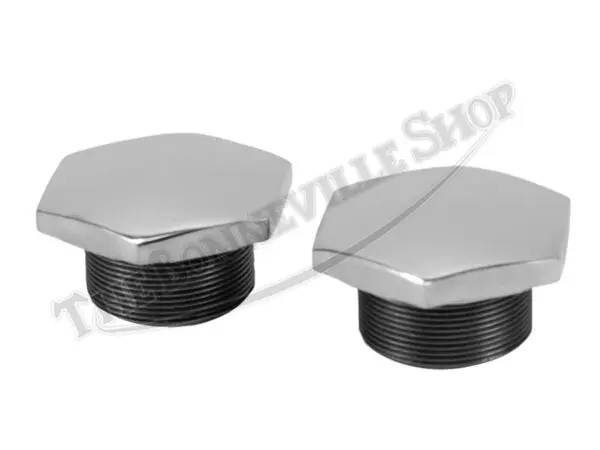

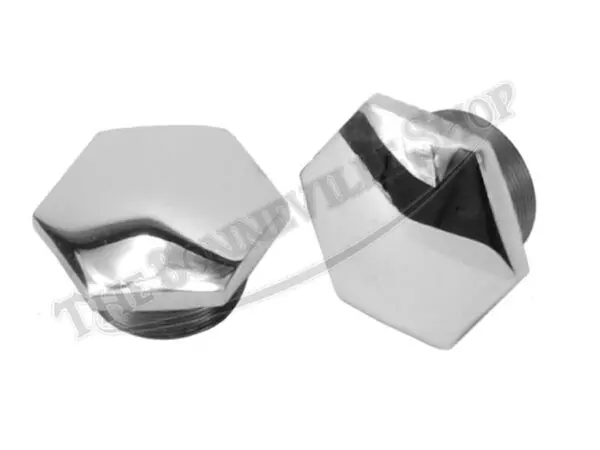

These chrome domed fork top nuts are internally threaded to accept the damper rods used in the off-road and scrambler models. They can also be fitted to some models without damper rods in place of 97-1658 fork top nuts.
26 TPI CEI fork top nuts are the correct original fitment for off-road and scrambler models from Triumph with the internal threads for the damper rods. Made in the UK by LF Harris will fit 1964-1965 Triumph T120C, 1966-1967 T100C, 1966-1967 TR6C and T120TT models.
The fork top nuts are threaded into the fork tube and seal the fork oil inside of the tube. The damper rods are threaded into the bottom of the fork cap nuts.
The fork top nuts are threaded into the fork tube using a large spanner.
IMPORTANT NOTE: These top fork nuts are 26 TPI with thread OD 1 1/16th” (1.062 “). Check the TPI of your forks before purchase to ensure fitment of these top nuts. See recommend links for a thread pitch gauge.
For our other fork top nut options CLICK HERE
For our selection of fork tubes CLICK HERE
For our selection of fork seals and holders CLICK HERE
LF Harris motorcycle spares are produced to the highest quality standards possible utilizing original Triumph tooling, dies, factory blueprints & materials combined with modern manufacturing equipment, tolerances & techniques.
