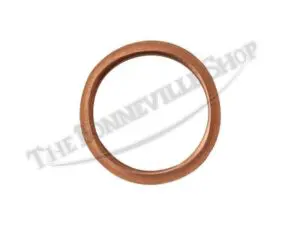

Triumph Rocker Box Valve Washer for 500 1971-1974 and 650 1971-1972, 71-2080 E12080
The copper crush washer is important to seal the oil in the rocker box after making tappet clearance adjustments. A total of four washers and plugs are used to gain access to each valve stem top using a feeler gauge.
The Triumph rocker box valve washer / copper crush washer is of a pleated design and is intended for a one-time use. It is recommended that the washer is replaced whenever the plug is removed from the rocker box. 5/8″ ID and 7/8″ OD.
The washer is fitted under the hex head of the inspection plug. Once the washer is crushed whilst tightening the plug, it is collapsed to form an oil-tight seal. It should be replaced after removing the plug for tappet clearance adjustment.
When working on Triumph rocker boxes, it’s essential to use the correct washers and place them in the proper order to ensure optimal engine performance and prevent oil leaks.Â
Select quantity from drop down menu.
