Triumph 500 1960-74 69mm Piston Ring Set Genuine Hepolite 70-6893 UK-Made R13570

$72.95

Clear
Add to Wishlist
Add to Wishlist
SKU: TBS-T500-HEP Categories: , , Tags: , Brands: OE Number: 70-6893 E6893Year: 1960-1974Make: TriumphModel: 5TA, T100C, T100S, T100R, TR5T

Description

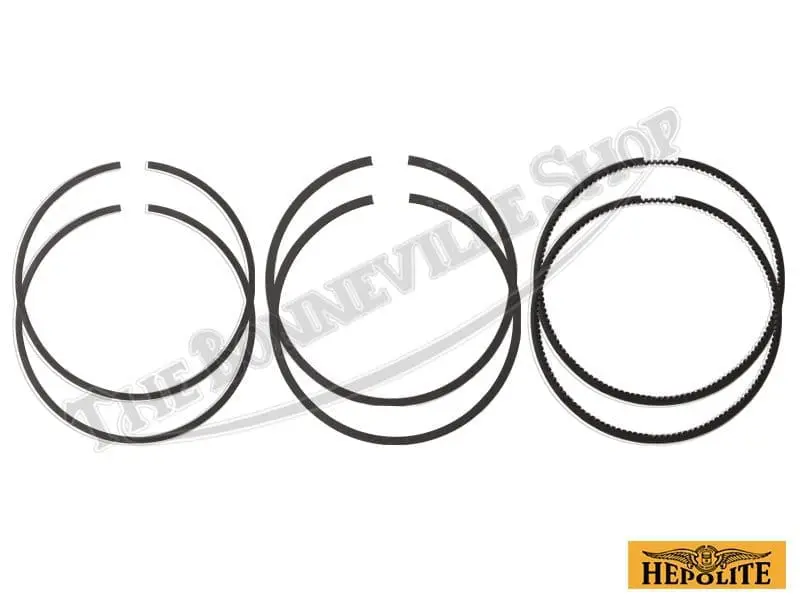

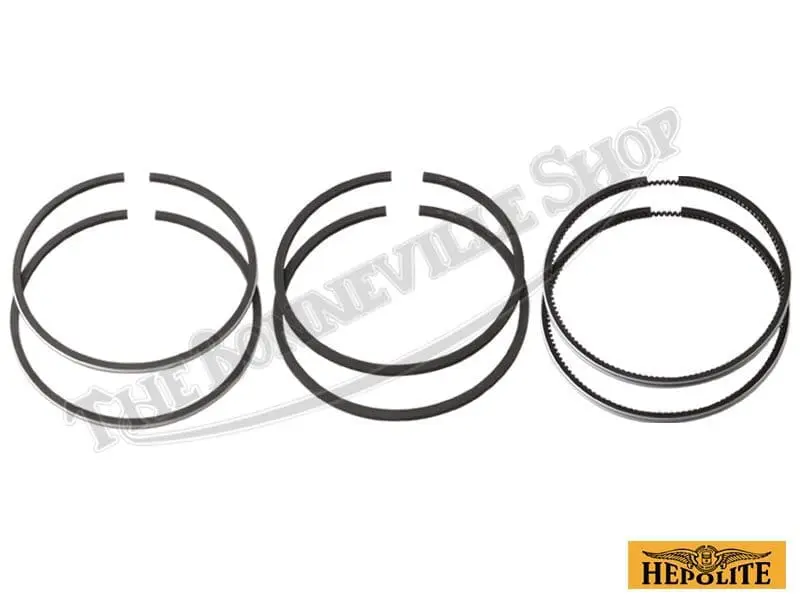

Genuine Hepolite piston rings are designed for specific applications and are manufactured to exacting standards for precise fitment. This set of Triumph T100 piston rings is designed for fitment to all 500cc unit-construction Triumph twins with 69mm pistons.

This piston ring set is specific to the Triumph 500 models in the 69mm standard bore condition. The top compression ring features PVD chromium nitriding on the ring face. The lower compression ring is coated with a black phosphate, and the 2-piece oil control ring uses an expander spring, providing a superior radial distribution of pressure across the cylinder bore. Made in the UK.

The piston rings form a seal during compression and promote oil lubrication of the cylinder bore walls. They must be accurately sized to fit in the piston ring grooves with clearance. The Hepolite piston rings are an excellent complement to the JCC/Emgo piston sets we offer.

Ring end gaps must be checked and adjusted, if necessary, prior to fitment to the pistons. Care must taken when handling piston rings, as they are brittle and can be broken if mishandled, especially during fitment to the pistons. Suggested ring end gaps are .004″-.006″ per inch of bore for compression rings. End gap for the oil control ring is not as critical as the expander spring creates the even tension. The installation of the expander spring must be such that the gap of the spring is 180 degrees apart from the gap in the oil control ring.

Available sizes include: Standard, +.020, +.040, +.060 and +.080. Select your desired size from the drop-down menu.
