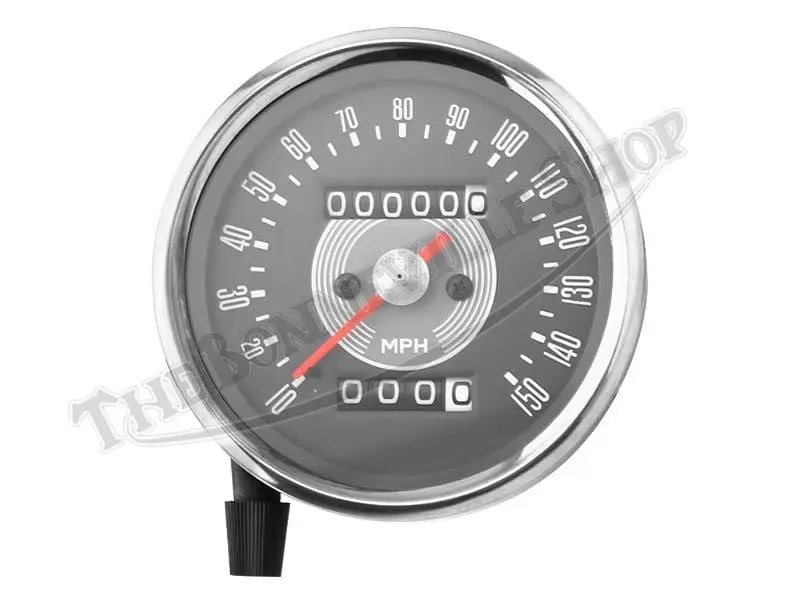

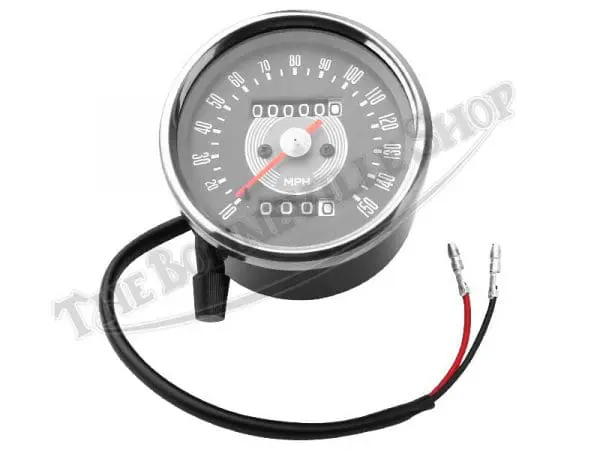

The 150 mph grey-faced speedometer is a replica of the Smith’s SSM 5001/05 and SSM 5001/06 instruments, and is compatible with 1.25:1 speedometer drive gearboxes.
Suitable for:
- 1967-1970 BSA A50, A65
- 1968-1969 BSA A75
- 1967-1970 Triumph TR6, T120 models
- 1968-1969 Triumph T150
The speedometer is a Smith’s SSM 5001/05 and SSM 5001/06 replica. Must be paired with a 1.25:1 or 15/12 speedometer drive gearbox. Note that the SSM 5007/00 replica is 1/4″ taller than the original Smith’s instrument.
The speedometer is driven by the speedometer drive gearbox on the rear wheel that is coupled to the instrument with a rotating inner cable.

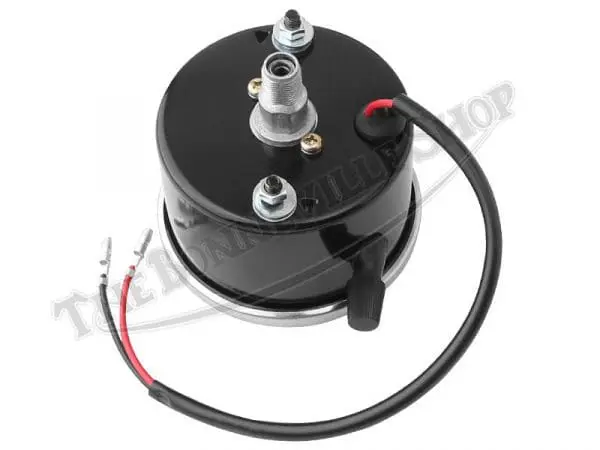

The speedometer is mounted in a rubber cup on the BSA models, and hard-mounted to a bracket on the Triumph models. The cable is threaded to the instrument’s receptacle with a knurled nut. The other end of the cable is threaded into the speedometer drive gearbox.
The product images shown are for illustrative purposes only and may not be an exact representation of the product received. Manufacturers occasionally make minor cosmetic changes to items, such as color, finish, label, or design. These changes do not impact the item’s function or compatibility. Please contact us if you have specific concerns regarding appearance.
