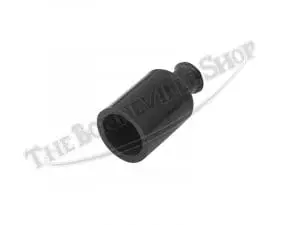

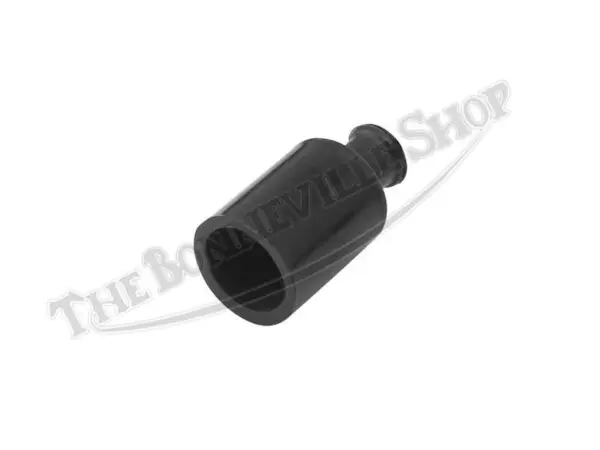

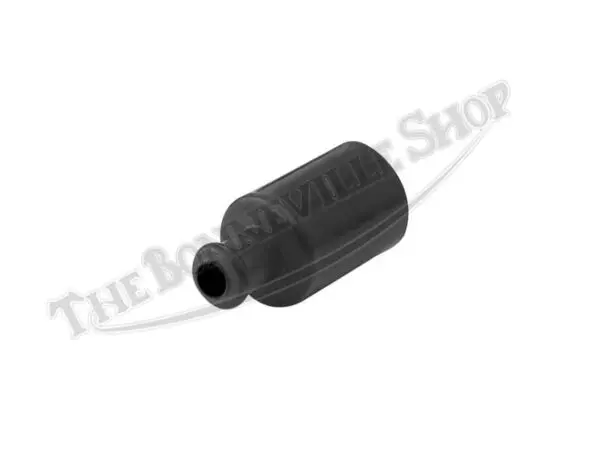

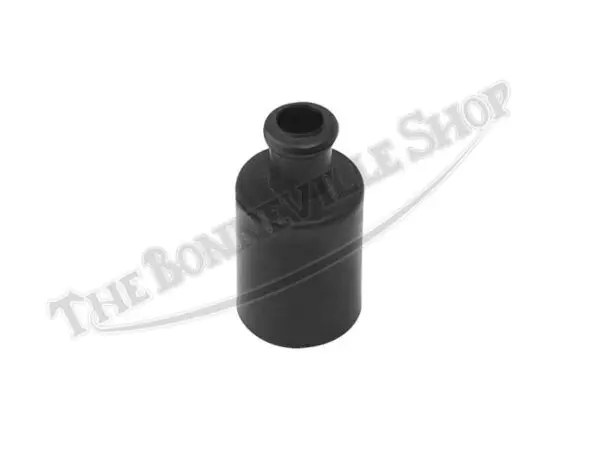

Triumph BSA 500 650 750 etc Alternator Lead Grommet PN# 70-4144 68-0209


Add to Wishlist
Add to Wishlist
SKU: VAR-70-4144 Categories: , Tags: , , , , OE Number: 70-4144 E4144Year: 1963-1982Make: BSA TriumphModel: BSA 500, 650, and 750 twins. Triumph 500, 650, and 750 twins.


The grommet is important as it helps to allow primary chain case oil from migrating out of the chain case through the sleeve that the stator leads pass through.

This item is appropriate for BSA and Triumph 500, 650, 750 twins from 1963-1982.

The grommet is a rubber seal that is fitted over the wire guide sleeve for the stator wires.

The grommet is fitted over the stator leads sleeve and in the later Triumph models, is used as an inner seal with the 71-1435 outer grommet as an outer seal.
