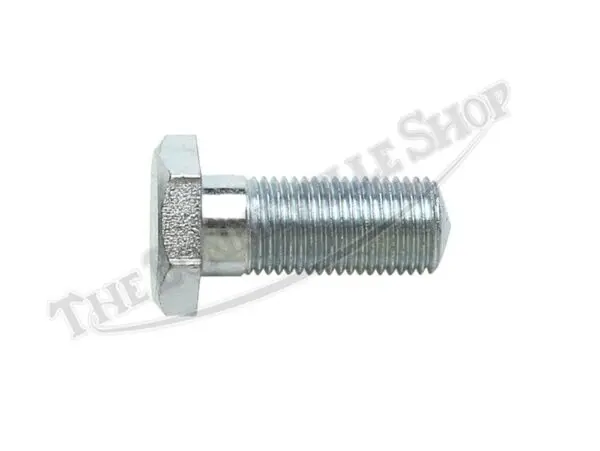

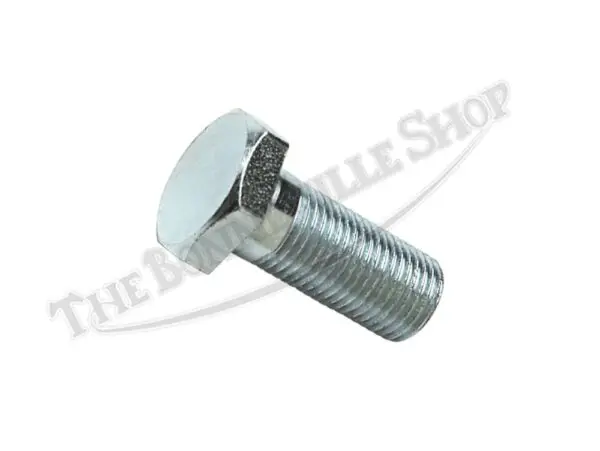

Correct for fitment to the 1965-1968 Triumph 650 models, this bolt is used for engine plate mounting to the rear frame tab. (1) bolt is used on the left engine plate. Not used on the 6T models.
The 3/8″-26 TPI CEI bolt is zinc-plated and measures 15/16″ UH. Made in the UK for LF Harris.
The bolt passes through the engine plate and the mounting tab on the lower left rear frame and is fastened with a nut and washer facing outward.
It is recommended that during the installation of the engine plates all fasteners are loosely fitted, then tightened once correct alignment is established.
The product images shown are for illustrative purposes only and may not be an exact representation of the product received. Manufacturers occasionally make minor cosmetic changes to items, such as color, finish, label, or design. These changes do not impact the item’s function or compatibility. Please contact us if you have specific concerns regarding appearance.
