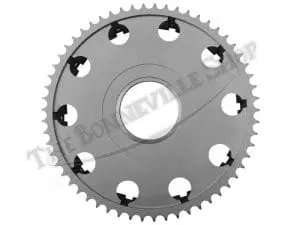

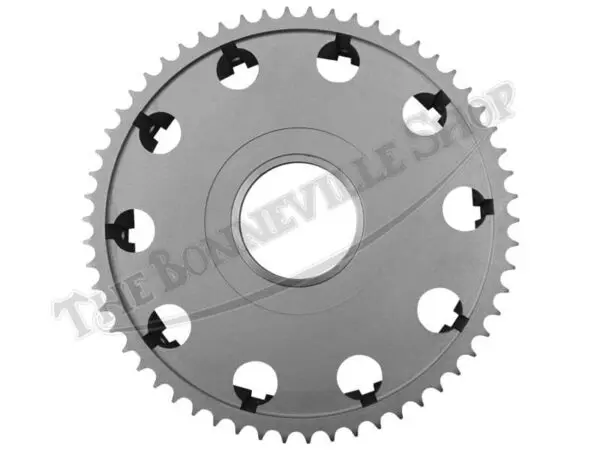

Triumph 350 500 and 650 Twins Clutch Sprocket 58 Teeth Duplex PN# 57-1570 T


In stock

Add to Wishlist
Add to Wishlist
SKU: 633726157002 Categories: , Tags: , OE Number: 57-1570 T T1570Year: 350 models 1967-1969 500 models 1960-1974 650 models 1963-1972Make: TriumphModel: 350 models 1967-1969 500 models 1960-1974 650 models 1963-1972


The clutch chainwheel is the nexus between the engine sprocket and the transmission. It houses the clutch plates which engage to drive the power of the engine to the transmission, and when disengaged, allows the engine to run independently of the driveline. The condition of the clutch sprocket is critical to smooth clutch operation.

The reproduction clutch chainwheel is quality manufactured in Taiwan for Emgo. Suitable for the economical replacement of an original worn out clutch chainwheel, but not recommended for competition use.

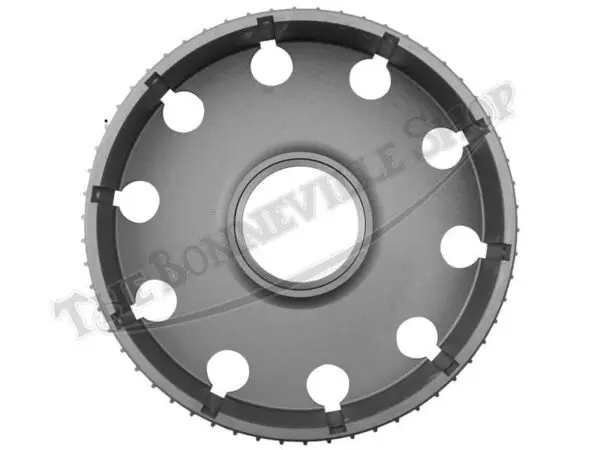

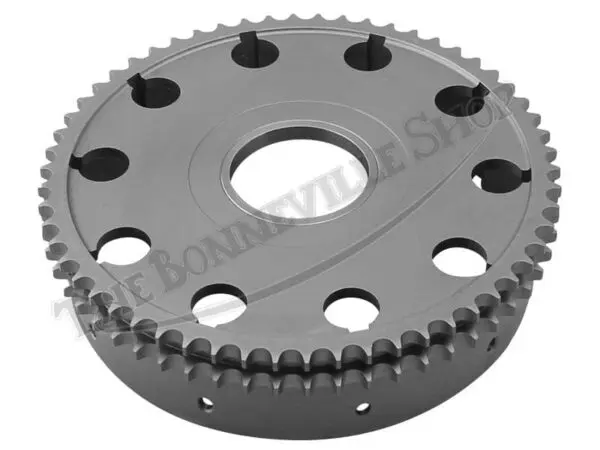

The 58 teeth Duplex sprocket houses the stack of friction driving clutch plates and plain steel driven plates. Roller bearings are assembled between the clutch hub and the hardened race of the clutch chainwheel. The hub is fitted to the tapered end of the transmission main shaft and supports the clutch center.

The clutch springs must be removed from the pressure plate and the center retaining nut must be removed, allowing the special puller tool used to break the clutch hub off it’s taper fit on the main shaft. The procedure is outlined in the workshop manual and should be closely followed.

Want to save weight? We also sell a beautiful alloy version click here.

For the purists we also stock the UK made version click here.
