Triumph Unit T140 750 Bonneville Tiger Trophy Complete Gasket Set with Headgasket U.S. Made PN# TBS-1751 H 71-3681

$79.95

Only 1 left in stock

Add to Wishlist
Add to Wishlist
SKU: 633726135062 Categories: , Tags: , Year: 1973-82Make: TriumphModel: 750

Description

High quality gaskets are important for building an oil-tight engine.

These are genuine Cov-Seal gaskets, made in the USA. Excellent fitment and the materials are the best quality available.

These gaskets are designed to be used without sealant, due to their superior composition.

The mating surfaces must be free of old gasket material and sealant, and polished flat.

We sell the only gasket cement you should use to affix timing covers CLICK HERE

Don’t forget an oil seal kit CLICK HERE

To see other gaskets we sell as kits and individually CLICK HERE

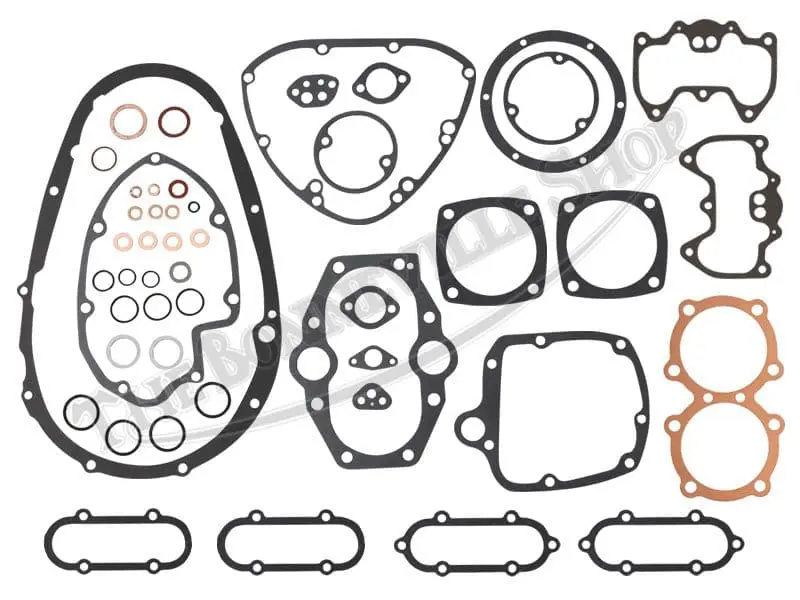

INDIVIDUAL GASKETS FOR THIS KIT ARE LISTED BELOW FOR INFORMATIONAL PURPOSES ONLY. GASKETS IN THIS KIT ARE NOT PARSED FOR INDIVIDUAL SALE. THIS ITEM IS SOLD AS A KIT ONLY AND INCLUDES:

(1) 71-3681 Copper head gasket
(1) 57-1770 Primary cover gasket
(1) 70-6309 Cylinder base gasket
(1) 71-7263 Timing cover gasket
(1) 57-7012 Inner gearbox cover gasket
(1) 71-1448 Outer gearbox cover gasket
(2) 71-2599 Rocker cover gaskets
(2) 71-3673 Rocker inspection cover gaskets
(2) 71-2574 Rocker inspection cover gaskets
(1) 71-1419 Cover plate gasket
(1) 71-1457 Rotor inspection cover gasket
(1) 71-1462 Points cover gasket
(1) 71-3910 Oil pump gasket
(1) 71-3754 Oil pipe junction block gasket
(1) 71-1460 Breather outlet stub gasket
(2) 83-2829 Sump plate gaskets
(2) 70-5660 Manifold gaskets
(4) 71-1283 Pushrod tube o-rings
(2) 70-4752 Pushrod tube seals
(2) 60-3548 Rocker spindle o-rings
(2) 70-7563 Guide block o-rings
(1) 70-7431 Drain plug o-ring
(1) 60-2640 Shift spindle o-ring
(4) 70-1335 Rocker feed copper washers
(1) 70-5315 Crankcase filter copper washer
(1) 57-1257 Fiber washer
(1) 70-8896 Fiber washer
(3) 82-1880 Copper washers
(2) 70-2441 Copper washers
(1) 70-8754 Oil pressure relief valve fiber washer
(1) 70-1670 Oil pressure relief valve fiber washer
