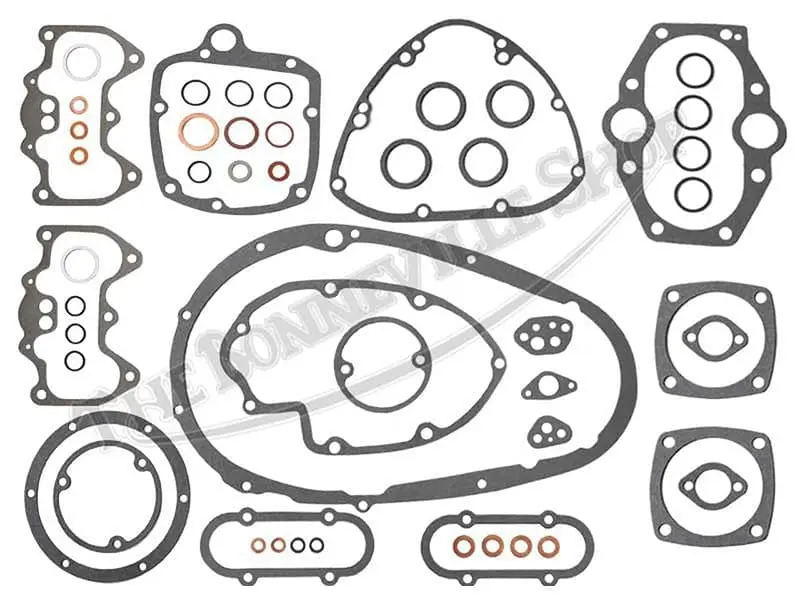

Triumph 650 Complete Gasket Set Without Head Gasket 1971-72 Twins PN# TBS-1653

Assembled specifically for the 1971 and 1972 Triumph 650 models, this Cov-Seal comprehensive gasket set contains virtually all of the gaskets, fiber washers, and o-rings to complete an engine overhaul. The copper head gasket is not supplied with this set.

Made in the US, Cov-Seal gaskets feature a unique gasket material binding agent, known as Buna-N, which is the same material most o-rings are made from. These gaskets are meant to be fitted dry, as gasket sealants may contain chemicals that can soften Buna-N.

Gaskets form a seal between two mating surfaces. It is important that the mating surfaces are flat, completely cleaned, and devoid of any residual sealant or old gasket material. Properly prepared joining surfaces are critical to ensuring an oil-tight motor.

Once the mating surfaces are all prepared, the gaskets are fitted where applicable, and the hardware is tightened to form an oil-tight seal. The existing copper head gasket can often be annealed to restore it’s suppleness and be put back into service between the cylinder barrel and cylinder head.

To see other gaskets we sell as kits and individually CLICK HERE

INDIVIDUAL GASKETS FOR THIS KIT ARE LISTED BELOW FOR INFORMATIONAL PURPOSES ONLY. GASKETS IN THIS KIT ARE NOT PARSED FOR INDIVIDUAL SALE. TBS-1653 IS SOLD AS A KIT ONLY AND INCLUDES:

(1) 71-1463 Primary cover gasket
(1) 71-7263 Timing cover gasket
(1) 70-6309 Cylinder base gasket
(1) 71-1448 Outer gearbox cover gasket
(1) 57-7012 Inner gearbox cover gasket
(2) 83-2829 Sump plate gaskets
(2) 71-2599 Rocker box gaskets
(1) 71-1419 Cover plate gasket
(1) 71-1457 Rotor inspection cover gasket
(1) 71-1462 Points cover gasket
(2) 71-2574 Rocker Inspection cover gaskets
(2) 70-5660 Manifold gaskets
(1) 71-1461 Oil pump gasket
(1) 71-1460 Breather outlet gasket
(1) 71-1458 Oil junction block gasket
(4) 71-1283 Pushrod tube o-rings
(2) 70-4752 Pushrod tube seals
(3) 70-8782 Inspection cap o-rings
(4) 70-3751 Rocker inspection cap gaskets
(1) 70-5315 Drain plug copper washer
(4) 70-1335 Copper washers
(1) 57-1738 Fiber washer
(3) 82-1880 Copper washers
(1) 57-1257 Fiber washer
(4) 70-2441 Copper washers
(2) 70-7563 Guide block o-rings
(1) 70-1670 Fiber washer
(1) 70-9738 Fiber washer
(1) 60-3530 O-ring
(2) 60-3548 Rocker spindle o-rings
