This right-hand Amal 626 Premier carburetor is set up in the twin-carburetor configuration, with a #3 slide cutaway, 17 pilot jet, and 160 main jet. The adjusting screws and tickler are on the right side of the body.

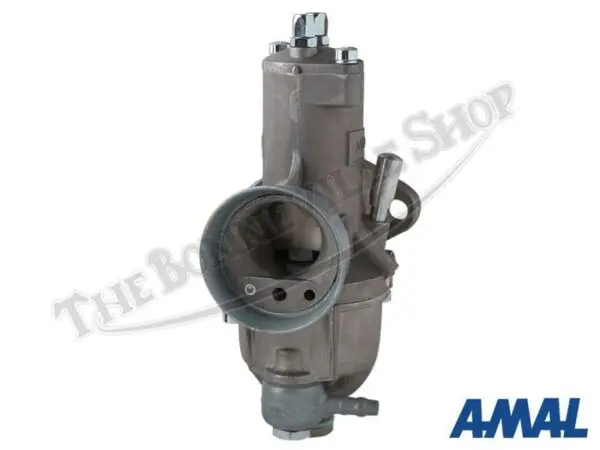

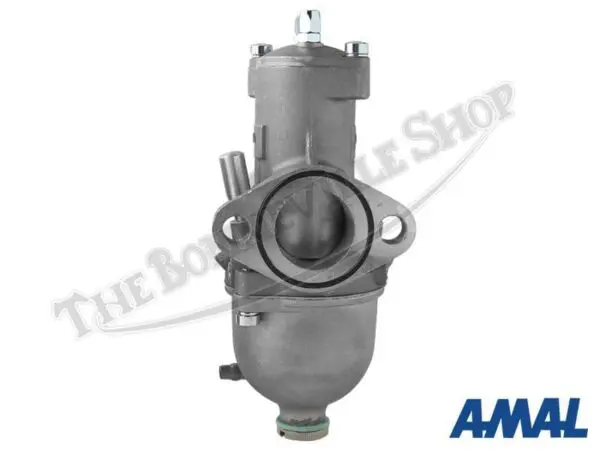

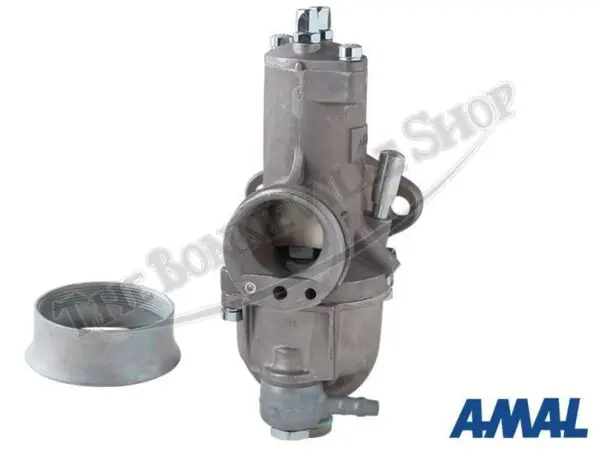

The latest iteration of the Premier 600 series 26mm bore Amal Concentric, as used on the Triumph 500 T100R Daytona models. The carburetor body is now made of aluminum alloy, for increased heat dissipation, lighter weight, and increased wear resistance. Updated “Stay-up” float and Viton-tipped float needle are important features. Jetted for use on a twin-carburetor application.
The Amal 626R-AL is ideally paired with the 626L-AL left-hand carburetor. Can be used as a single carburetor on models requiring one carburetor but will likely need a #3.5 or #4 slide cutaway and larger main jet for proper performance.
The carburetor is mounted to the inlet manifold and is fitted with an air cleaner. A dual inlet banjo is usually fitted to the float bowl on models with twin petcocks fitted to the petrol tank.
Note: The carburetor top cap adjusters must be removed and the threaded holes drilled out to accept Triumph-specific throttle and choke cables with the “top-hat” ferrules fitted.
